Parts Inventory: TrafFix Scorpion TMA NCHRP 350

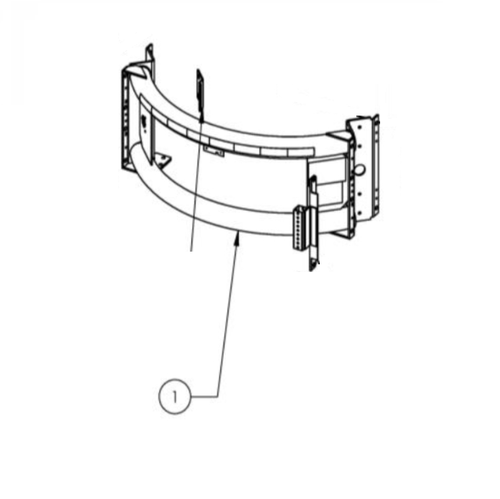

1
Strut Tube Assy, LH, Includes: C-Tape, Warning Labels, Side Marker Bracket Installed
10200TL-KIT
Quantity
2
Strut Tube Assy, RH, Includes: C-Tape, Warning Labels, Side Marker Bracket Installed
10200TR-KIT
Quantity
3
Module D, Energy Absorbing, Scorpion TMA
10400D
Quantity

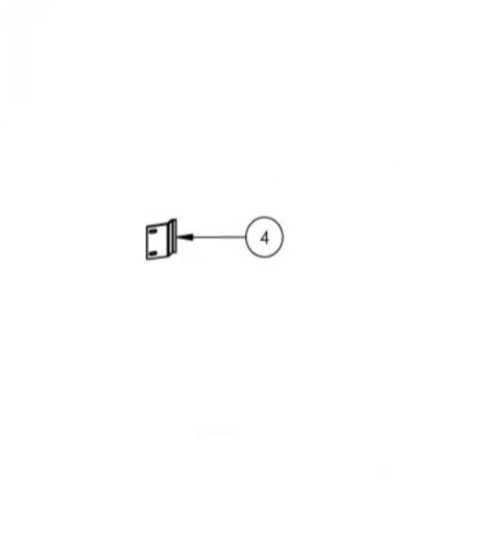

4
Energy Absorber Bracket
10204
Quantity
4
Energy Absorber Bracket
10204
Quantity

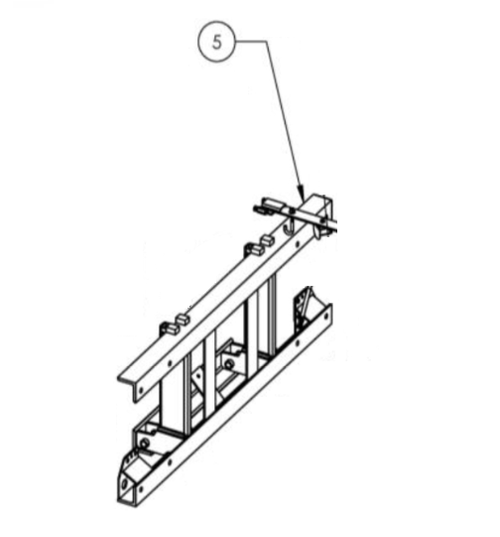

5
Backup, Powder Coated Black
10300-KIT
Quantity
6
Rear Diaphragm, Strut, Powder Coated Black
10200E
Quantity

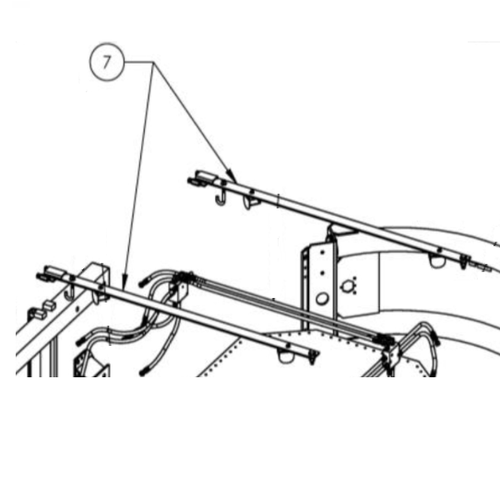

7
Tension Strap Set, Powder Coated Black, Includes Hardware
10118
Quantity
8
Lockout Arm, Powder Coated Black, Includes Hinges and Hardware
10800
Quantity
9
Hydraulic Bracket, RH
10351
Quantity

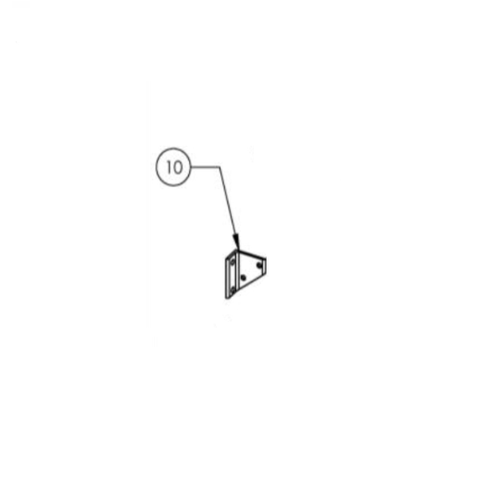

10
Hydraulic Bracket, LH
10352
Quantity

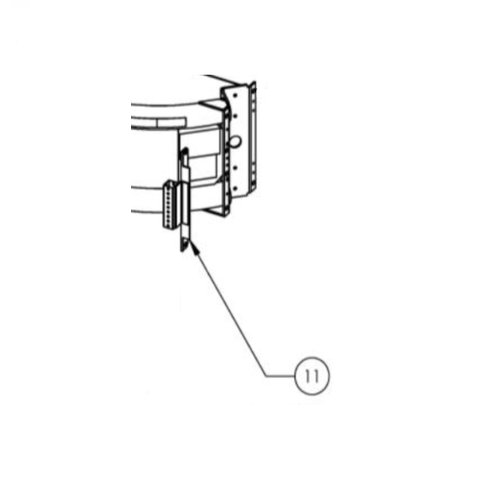

11
Drop Jack Bracket, Universal, Powder Coated Black
10750
Quantity
11
Drop Jack Bracket, Universal, Powder Coated Black
10750
Quantity

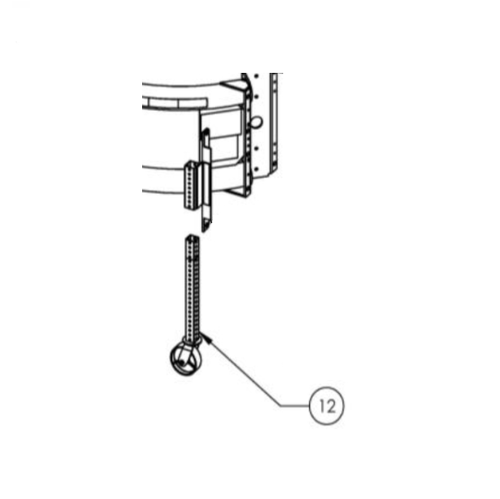

12
Drop Jack w/ 6" Caster
10725
Quantity
12
Drop Jack w/ 6" Caster
10725
Quantity

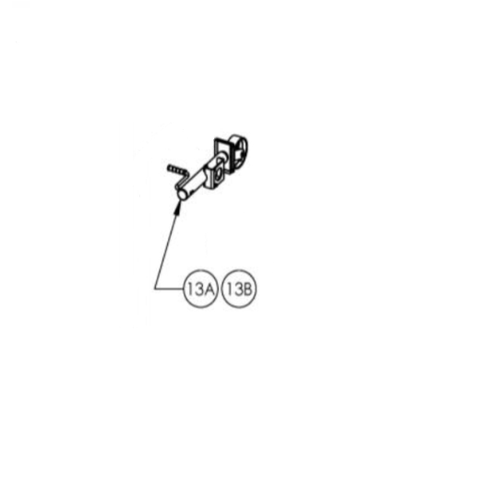

13A
Heavy Duty Swivel Jack w/ 6" Caster
10701MNJ
Quantity
13B
Light Duty Swivel Jack
10701
Quantity
14
Hydraulic Hose Kit
10600H
Quantity

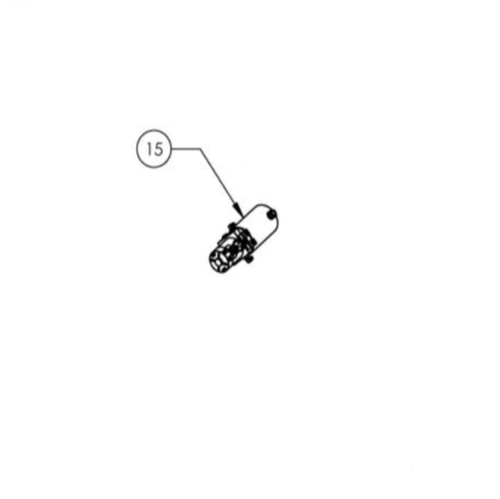

15
Hydraulic Power Unit, 12V, Field Service Replacement
11010
Quantity
16
Hydraulic Cylinder, 3" Bore, 8" Stroke, Includes ORB & NPT Adaptor Fittings
11001A
Quantity
17
Hydraulic Cylinder, 2-1/2" Bore, 8" Stroke, ORB & NPT Adaptor Fittings
10601A
Quantity
18
Hydraulic Cylinder, 2" Bore, 4" Stroke, ORB & NPT Adaptor Fittings
10802A
Quantity

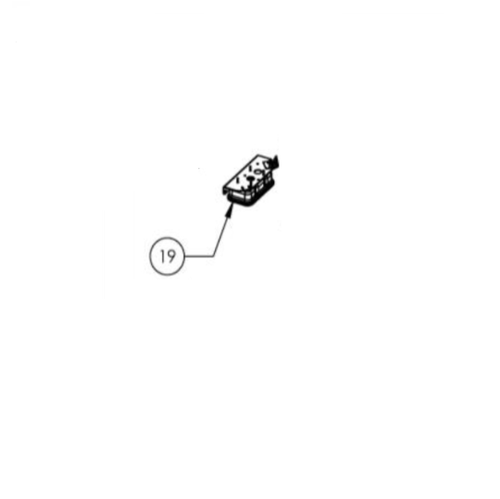

19
Strut Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Red/Red/White
10508C-LED
Quantity

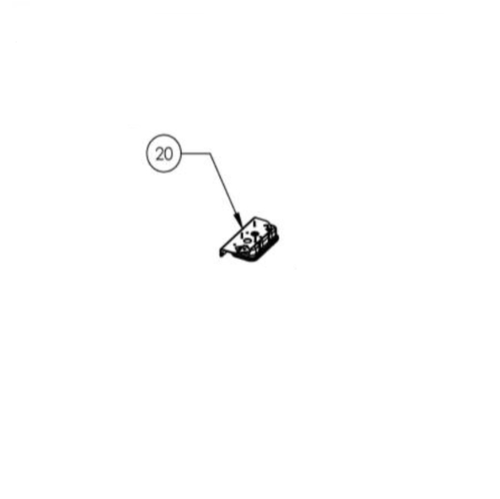

20
Strut Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Red/Red/White
10516C-LED
Quantity

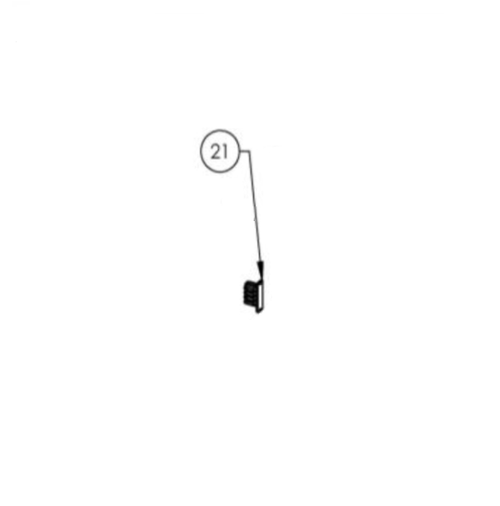

21
Junction Block
10518
Quantity
21
Junction Block
10518
Quantity

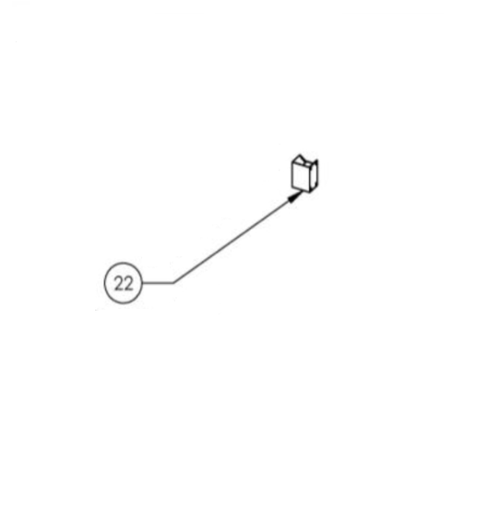

22
Motion Alarm, 10-30 Volt
10507C
Quantity

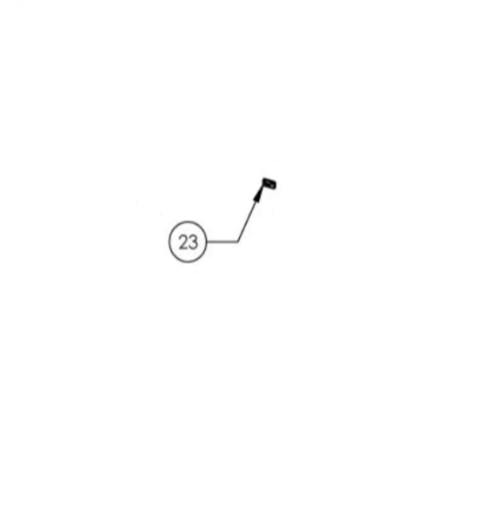

23
Sider Marker Light, Amber, 10-30 Volt LED
10573
Quantity
23
Sider Marker Light, Amber, 10-30 Volt LED
10573
Quantity

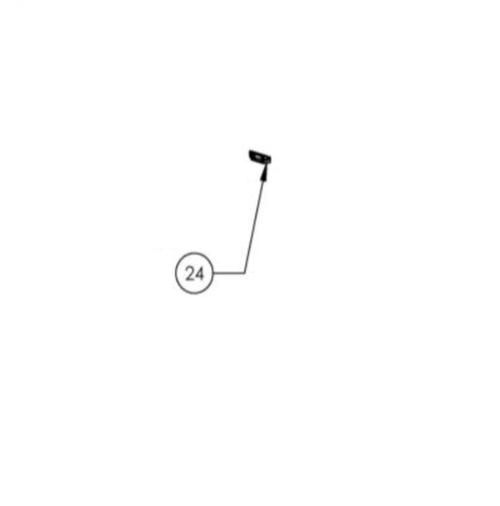

24
Housing, Side Marker Light
10520
Quantity
24
Housing, Side Marker Light
10520
Quantity

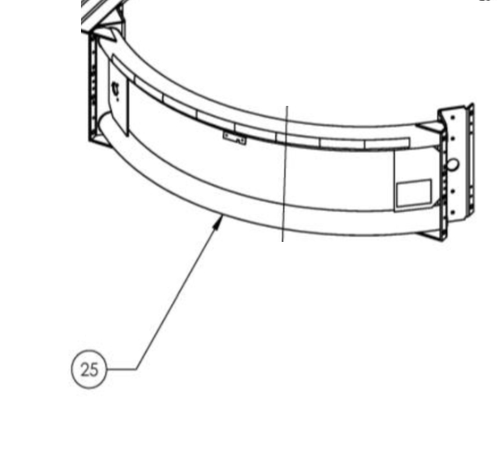

25
Cartridge Tube Assy, LH, Includes: C-Tape, Warning Labels, Side Marker Bracket Installed
10100L-KIT
Quantity

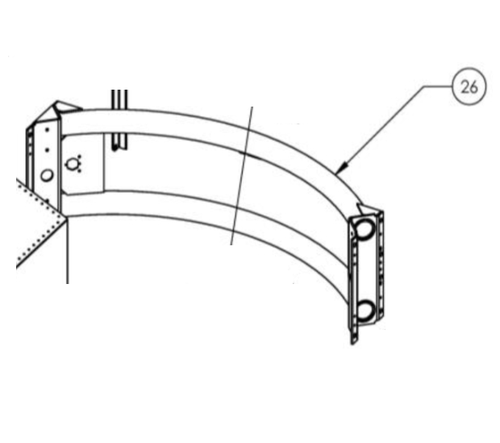

26
Cartridge Tube Assy, RH, Includes: C-Tape, Warning Labels, Side Marker Bracket Installed
10100R-KIT
Quantity

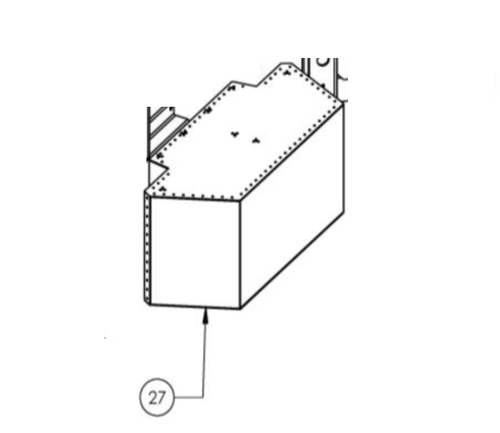

27
Module C, Energy Absorbing
10400C
Quantity
28
Module B, Energy Absorbing
10400B
Quantity

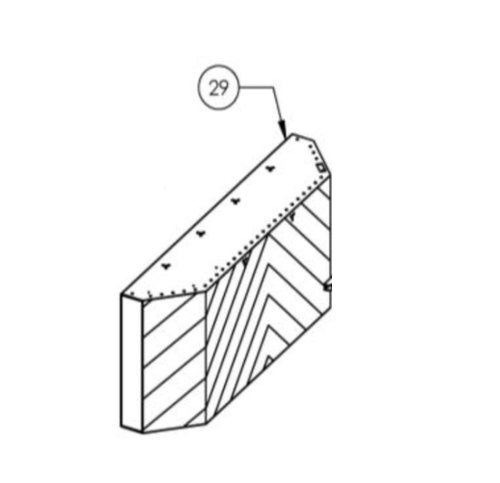

29
Module A, Energy Absorbing, 4" Yellow Avery MVP Sheeting
10400A
Quantity
30
Front Diaphragm, Cartridge, Powder Coated Black
10100E
Quantity
31
Rear Diaphragm, Cartridge, Powder Coated Black
10100D
Quantity
32
Bottom Angle, Cartridge, Powder Coated Black
10127
Quantity

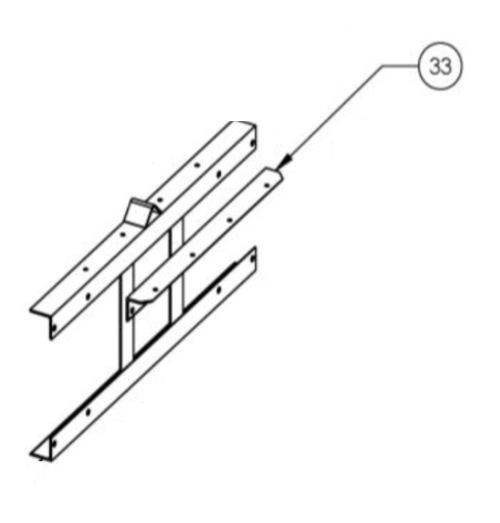

33
Top Angle, Cartridge, Powder Coated Black
10465
Quantity
34
Vertical Support Angle, Powder Coated Black
10122
Quantity
34
Vertical Support Angle, Powder Coated Black
10122
Quantity

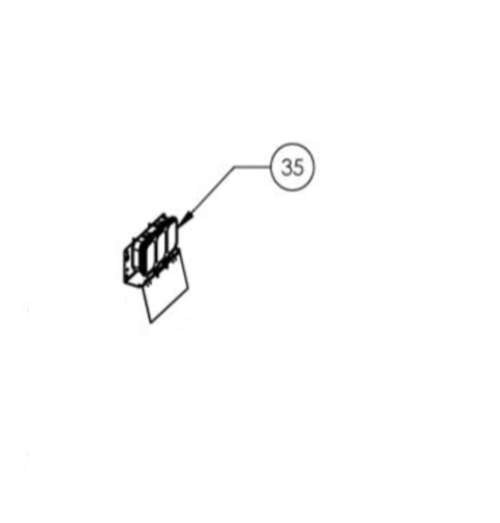

35
Cartridge Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Red/Red/White
10508B-LED
Quantity

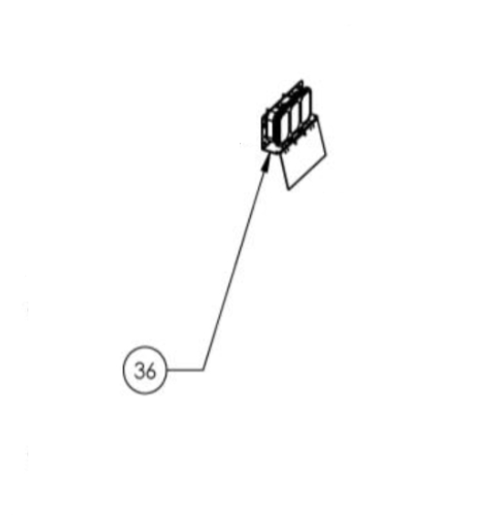

36
Cartridge Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Red/Red/White
10516B-LED
Quantity
37
ICC Bar Light Assy w/ Cover Flap
10500B
Quantity
IMAGE ITEM # PART # ITEM DESCRIPTION QUANTITY NEEDED
1 10200TL-KIT Strut Tube Assy, LH, Includes: C-Tape, Warning Labels, Side Marker Bracket Installed
2 10200TR-KIT Strut Tube Assy, RH, Includes: C-Tape, Warning Labels, Side Marker Bracket Installed
3 10400D Module D, Energy Absorbing, Scorpion TMA
4 10204 Energy Absorber Bracket
5 10300-KIT Backup, Powder Coated Black
6 10200E Rear Diaphragm, Strut, Powder Coated Black
7 10118 Tension Strap Set, Powder Coated Black, Includes Hardware
8 10800 Lockout Arm, Powder Coated Black, Includes Hinges and Hardware
9 10351 Hydraulic Bracket, RH
10 10352 Hydraulic Bracket, LH
11 10750 Drop Jack Bracket, Universal, Powder Coated Black
12 10725 Drop Jack w/ 6" Caster
13A 10701MNJ Heavy Duty Swivel Jack w/ 6" Caster
13B 10701 Light Duty Swivel Jack
14 10600H Hydraulic Hose Kit
15A 11010 Hydraulic Power Unit, 12V, Field Service Replacement
15B 11011 Hydraulic Power Unit, 24V, Field Service Replacement
16 11001A Hydraulic Cylinder, 3" Bore, 8" Stroke, Includes ORB & NPT Adaptor Fittings
17 10601A Hydraulic Cylinder, 2-1/2" Bore, 8" Stroke, ORB & NPT Adaptor Fittings
18 10802A Hydraulic Cylinder, 2" Bore, 4" Stroke, ORB & NPT Adaptor Fittings
19A 10508C-LED Strut Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Red/Red/White
19B 10504C-LED-RYR Strut Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Red/Amber/Red
19C 10504C-LED-YRW Strut Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Amber/Red/White
20A 10516C-LED Strut Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Red/Red/White
20B 10505C-LED-RYR Strut Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Red/Amber/Red
20C 10505C-LED-YRW Strut Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Amber/Red/White
21 10518 Junction Block
22 10507C Motion Alarm, 10-30 Volt
23 10573 Sider Marker Light, Amber, 10-30 Volt LED
24 10520 Housing, Side Marker Light
25 10100L-KIT Cartridge Tube Assy, LH, Includes: C-Tape, Warning Labels, Side Marker Bracket Installed
26 10100R-KIT Cartridge Tube Assy, RH, Includes: C-Tape, Warning Labels, Side Marker Bracket Installed
27 10400C Module C, Energy Absorbing
28 10400B Module B, Energy Absorbing
29 10400A Module A, Energy Absorbing, 4" Yellow Avery MVP Sheeting
30 10100E Front Diaphragm, Cartridge, Powder Coated Black
31 10100D Rear Diaphragm, Cartridge, Powder Coated Black
32 10127 Bottom Angle, Cartridge, Powder Coated Black
33 10465 Top Angle, Cartridge, Powder Coated Black
34 10122 Vertical Support Angle, Powder Coated Black
35A 10508B-LED Cartridge Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Red/Red/White
35B 10504B-LED-RYR Cartridge Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Red/Amber/Red
35C 10504B-LED-YRW Cartridge Tail Light Assy, LH, 10-30 Volt LED, Color Pattern: Amber/Red/White
36A 10516B-LED Cartridge Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Red/Red/White
36B 10505B-LED-RYR Cartridge Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Red/Amber/Red
36C 10505B-LED-YRW Cartridge Tail Light Assy, RH, 10-30 Volt LED, Color Pattern: Amber/Red/White
37 10500B ICC Bar Light Assy w/ Cover Flap
